Food / Pharmaceutical Machinery For Softgel / Paintball Maker / 55470 Capsules / Hour
Quick Detail
| Product Name | Soft capsulate/Paintball making machine | Driven Type | Electric |
| Capacity | 43470 Capsule /hour, 8#OV 18000 Paintball/hour, 0.68"Ball | Control Mode | Full Automatic |
| Application | Food, pharmaceutical, fish oil making | Capsule shape | OV, OB,etc |
Auto Food / Pharmaceutical Paintball Encapsulation filling Machine with 7" Die Roll mold
Product Description

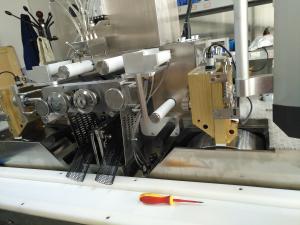

S407 soft capsule filling machine is suitable for medium scale production. Soft capsule making machine is used for making soft capsules, such as fish oil soft capsules, Vitamin E soft, Omega-3 and food capsules, etc.
Soft capsule making machine abosorbs advanced technologies at home and abroad, based on a combination of soft capsule production process and the characteristics of the use advanced technology and high quality materials to meet the GMP requirements of well-designed.
Capsule making machine consist of soft capsule machine, sol pot, mould (die roll), capsule conveyor, tumbler dryer, cooling air machine, vacuum pump, drying tray, vacuum mixing barrel and electrical control system and other ancillary equipment.
This machine can be applied to all kinds of drugs, food, cosmetics, oils and hydrophobic substances in the quantitative suspension or paste injection pressure and encapsulated in gelatin membrane, the formation of various sizes in sealing the soft capsules.
Specification
| Model | S407 |
| Die roll diameter | Ф103mm |
| Die roll length | 172mm |
| Die roll speed | 0~5 rpm |
| Plunger numbers | 10 |
| Dosage tolerance | ± 2% |
| dimension | 880X640X1900mm |
| weight | 900kg |
| Power consumption | 7kw |
| Control mode | PLC+HMI Switch / buttons |
| Output rate | 8#OV 43470 pcs/hour |
Competitve Advantages
1. Good stability
2. Adjustable rotation rate during 0-5rpm
3. Easy to operate and clean, conforming to GMP
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Big air flow
7. Reduce the oil consumption
